| Brand Name: | pray-med |
| Model Number: | OEM |
| MOQ: | 1Pcs |
| Price: | as discussed |
| Packaging Details: | 1pcs / bag |
| Payment Terms: | T/T, Western Union |

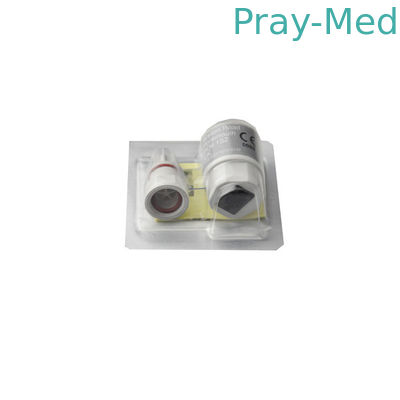

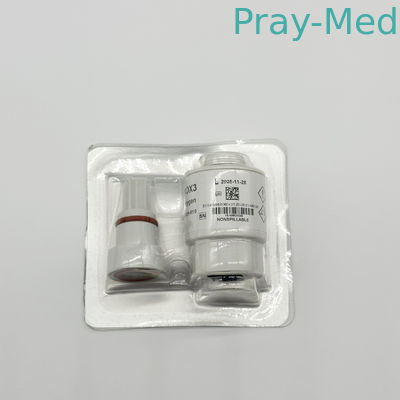

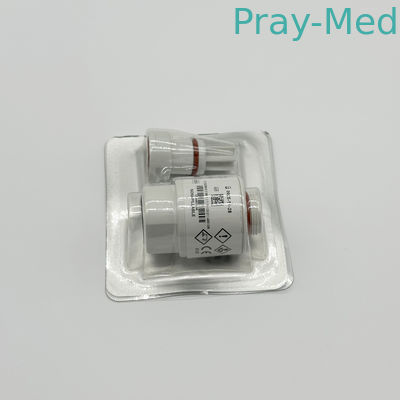

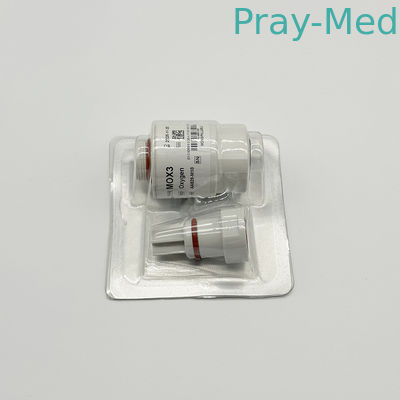

White ABS Medical O2 Sensor Mindray SynoVent E5 MOX-3 O2 Cell
MOX-3 O2 cell use to Mindray SynoVent E5
TECHNICAL SPECIFICATIONS
| MEASUREMENT | |
| Operating Principle | Partial pressure electrochemical |
| Output | 9 mV to 13 mV in 210 mBar O2 |
| Measurement Range | 0 mBar to 1500 mBar O2 |
| Response Time(Ty.)* | <15 s(air to 100%0,] |
| Baseline Offset* | <200 pV |
| Linearity |
Linear 0%to 100%02 [See Note1] |
| ELECTRICAL | |
|
Temperature Compensation |
<2%0,equivalent [0 to 40C) |
| External Load Resistor |
10 k0 minimum [See Important Note) |
| Connector |
UK Data Socket AMP (P/N 5520257-2) |
| MECHANICAL | |
| Housing Material | White ABS |
| Weight | 42 g(nominal) |
| Orientation | Any |
| ENVIRONMENTAL | |
| Typical Applications | Critical care anesthesia |
| Operating Temperature Range | -20° to+50℃ |
| Operating Pressure Range | 0.5 Bar to 2.0 Bar |
| Operating Humidity Range | 0% to 99%RH non-condensing |
| LIFETIME | |
| Long-Term Ouput Drift in 100%O2 | <5%signal loss/year |
| Recommended Storage |
-10 to+40C [Short excursions to+50°C allowed) |
|
Expected Operating Life: 20°C 40℃ |
1.5 x 106%0,hours 0.8x10%02hours |

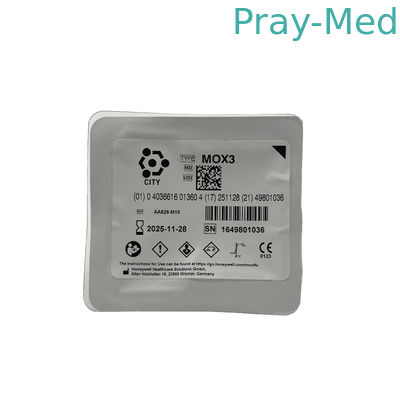

| Packaging | Sealed blister |
|
|
